Product
model
|

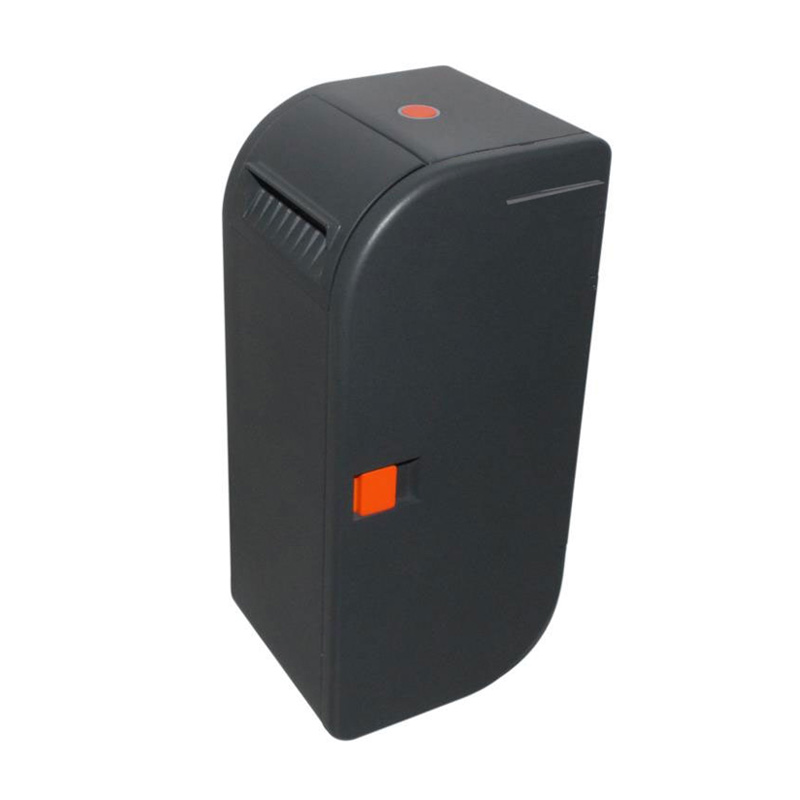

L60
|
|
|
print
|
Printing method
|
Thermal
|
|
resolution
|
203DPI (8 dots/mm)
|
|
Valid print width
|
56mm
|
|
Print length
|
20mm-60mm
|
|
Print speed
|
150mm/s(Max)
|
|
Print fonts
|
Chinese: GB18030 24*24 points
|
|
|
English: ASCII 12*24 points
|
|
detect
|
sensor
|
Paper shortage detection, paper
outlet detection, sewing mark detection, lid opening detection
|
|
medium
|
Paper type
|
Continuous paper, label stock
|
|
Paper roll width
|
30mm-60mm
|
|
Paper thickness
|
0.058-0.20mm
|
|
Maximum roll outer diameter
|
95mm
|
|
Paper shaft inner diameter
|
12mm/25mm/40mm
|
|
Paper thickness
|
|
|
Communication
interface
|
|
USB, RS232C serial port
|
|
Power
output
|
|
DC12V/24V,2A
|
|
keystroke
|
|
FEED key
|
|
Light
|
|
Power LED, error LED
|
|
Audible
prompts
|
|
Buzzer (reserved)
|
|
Instruction
set
|
|
TSC/ESC
|
|
compatibility
|
Supported platforms
|
Windows,Linux,Android
|
|
Barcodes
|
One-dimensional
|
UPC-A/UPC-E/EAN13(JAN13)/
|
|
|
EAN8(JAN8)/CODABAR/ITF/
|
|
|
CODE39/CODE93/CODE128
|
|
two-dimensional
|
QR Code，PDF417
|
