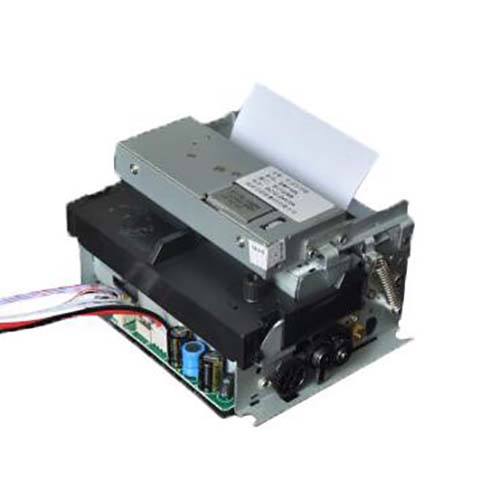

Embedded 9 pin serial impact dot matrix printer module KIOSK
76mm
Please send email to get more details: info@kaibotek.com
Specification:
| printing method | Nine-needle type bidirectional printing, 90 degree paper feeding | |
| printing speed | 42CPL 4.4L/s (Max) | |
| Paper width | 75.5±0.5mm | |
| Interface Type | USB/serial port | |
| Paper cutting method | Half cut or full cut | |
| Black mark detection | stand by | |
| ribbon | Compatible with RC200 | |
| Reliability printing | 9 million lines (MCBF) | |
| Cutter life | 1 million times | |
| Print characters | ASCII/GB18030 body Chinese / multinational character set | |
| power supply | DC24V/2A | |
| Environmental requirements | working environment | Temperature 0-50 ° C, humidity 10-80% |
| Storage environment | Temperature -10-60 ° C, humidity 10-90% | |
| drive | WinXP/Win7/Win8.1/Win10/Linux | |
| Print order | Compatible with ESC/POS commands | |
| Pull-proof | no | |
| Anti-blocking | no | |
| Front-end paper sensing | stand by | |
| Paper feeder | no | |
| Dimensions | 127 × 98 × 72mm (width × depth × height) | |
| weight | 775 grams |
