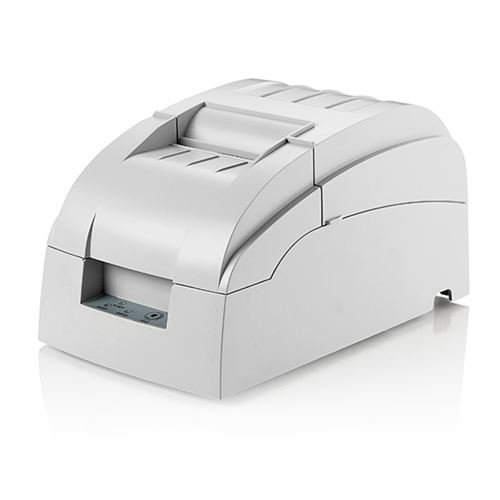

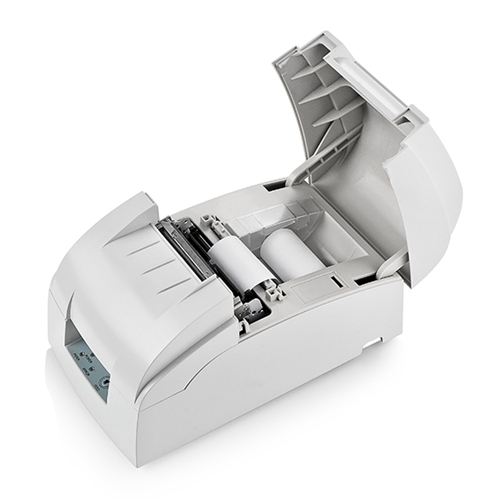

18pin serial impact dot matrix printer
76mm
Please send email to get more details: info@kaibotek.com
Specification:
| Print method | 18pin serial impact dot matrix |
| Print width | 40CPL-40(7X7)/33(5X7) |
| Print speed | Max.4.0L/s(40CPL Chinese character print one time) |
| Copy | 1 original +1copy |
| Interface type | Ethernet/USB+Serial/parallel |
| Paper type | Continuous paper，black mark paper |
| Paper width | 76±0.5mm |
| Paper thickness | Normal paper 0.07-0.10 mm ;pressure sensitive, |
| each part thickness 0.05-0.08mm，2 part total thickness≤0.14mm | |
| 3 part total thickness≤0.20mm | |
| Paper outer diameter | 83mm max |
| Cut paper method | / |
| Print mechanism | 9,000,000lines（MCBF） |
| Print head | 100 million characters |
| Auto cutter | ≥1,000,000times(standard test condition) |
| Character support | ASCII/GB18030 Simplified Chinese/Traditional Chinese/Multinational character set |
| Ribbon specification | Compatible with RC200 |
| Input | 110V-240V AC ,50/60Hz |
| Output | DC24V/2A |
| Work environment | Temperature 0-50°C,Humidity 10-80% |
| Storage environment | Temperature -10-60°C,Humidity 10-90% |
| Driver | Win2000/WinXP/Win Vista/Win7/Linux |
| Print command | ESC/POS command compatible |
| Dimension | 150×245×133mm(W×L×H） |
| Weight | About 1.7kg |
