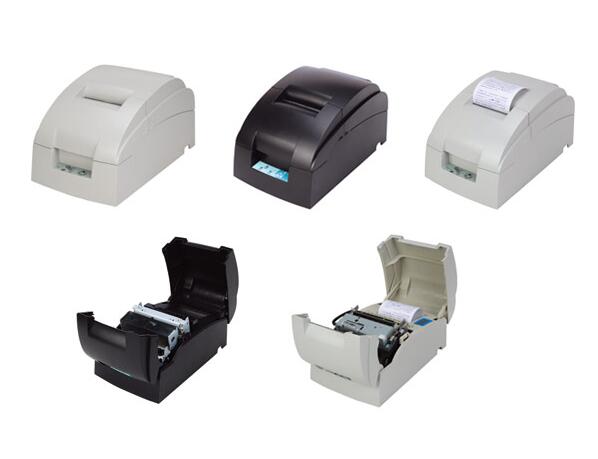

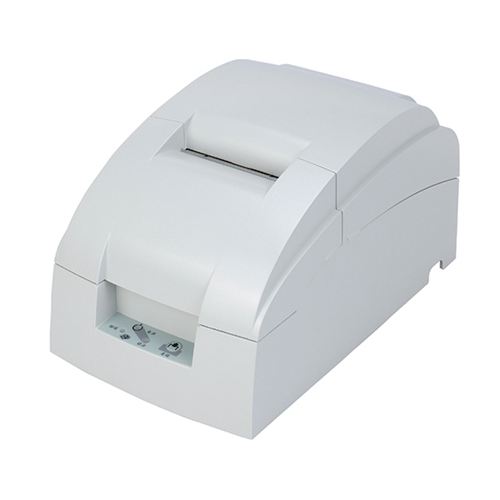

9pin serial impact dot matrix printer
76mm
Please send email to get more details: info@kaibotek.com
Specification:
| Print method | 9pin serial impact dot matrix |
| Print width | 42CPL-42(7X9)/35(7X7) |
| 40CPL-42(7X9)/35(7X7) | |
| Print speed | Max.4.4LPS(400dots/line) |
| Copy | 1 original +1copy |
| Interface type | Ethernet/USB+Serial/parallel |
| Paper type | Continuous paper，black mark paper |
| Paper width | 76±0.5mm |
| Paper thickness | Normal paper 0.07-0.10 mm ;pressure sensitive paper,total thickness≤0.14mm |
| Paper outer diameter | 83mm max |
| Cut paper method | Partial cut/full cut |
| Print mechanism | 10 million（MCBF） |
| Print head | 150 million characters |
| Auto cutter | ≥1,000,000times(standard test condition) |
| Character support | ASCII/GB18030 Simplified Chinese/Traditional Chinese/Multinational character set |
| Ribbon specification | Compatible with ERC-39 |
| Input | 110V-240V AC ,50/60Hz |
| Output | DC24V/2A |
| Work environment | Temperature 0-50°C,Humidity 10-80% |
| Storage environment | Temperature -10-60°C,Humidity 10-90% |
| Driver | Win2000/WinXP/Win Vista/Win7/Linux |
| Print command | ESC/POS command compatible |
| Dimension | 150×245×133mm(W×L×H） |
| Weight | About 2.0kg |
